Rivetless Riveting Machine

Rivetless Riveting Machine

Rivetless Riveting Machine

Rivetless Riveting Machine(known as TOX riveting machine or Tog-L-Loc riveting machine), it is divided by different types of driven power,including Spin Rivetless Riveting Machine, Hydraulic Boosting Rivetless Riveting Machine, Air-hydraulic Boosting Rivetless Riveting Machine.

Our company is the earliest manufacturer of rivetless riveting machine in China. We has won the national patent, with independent property rights. Rivetless riveting machine can be widely used in fastening metal sheet for car manufacturing, light industry, precision machinery,electronics appliances, hardware.

Scope of applications: Car manufacturing includes skylight, bumper, exhaust pipe, brake cover, door, instrumentation framework, engine mounts and cover, cooler, seat, shake window machine, muffler. As well refrigerator door, washing machine shell, fans shell, dentist machine shell etc.

We will introduce three types of rivetless riveting machine on this page:CNC Rivetless Riveting Machine, Hanging Rivetless Riveting Machine, Desktop/Vertical Air-hydraulic Boosting Rivetless Riveting Machine。

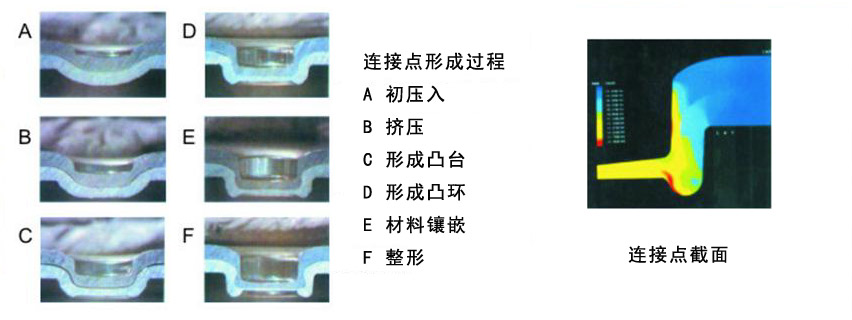

无铆钉连接过程图

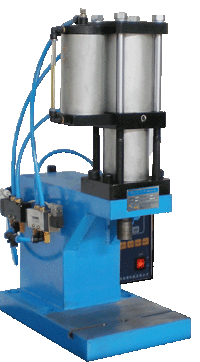

Desktop Air-hydraulic Boosting Rivetless Riveting Machine
      WMTZ-5            WMTZ-15
Model Max. Press A B C D E G H I J K M
Unit （T） mm mm mm mm mm mm mm mm mm mm mm
WMTZ－5 5 396 157 492 218 286  850 320 60 560 Φ20 M42
WMTZ－8 8 396 157 492 218 286 860 320 60 565 Φ20 M42
WMTZ-10 10 396 157 492 218 286 870 320 60 580 Φ20 M42
WMTZ-15 15 396 157 492 218 286 896 320 60 595 Φ20 M42
This type of machine can be customized as yours parameters.
Model
 WMTZ-5 WMTZ-8 WMTZ-10 WMTZ-15
Type Desktop Desktop Desktop Desktop
Punch Force (Ton)
 5 8 10 15
Stroke（mm) 75 75 75 75
Power stroke(mm) 5 5 5 5
Riveting rate(pcs/min)
 14～25 14～25 14～25 14～25
Max. Thickness(mm)
Gal. Steel
 2 3 4 5
Aluminum
 3 4 5 6
Air Supply 5-6kgf/cm2
Rated flow(m3/min)
 0.04 0.04 0.05 0.06
Positioning hole Yes Yes Yes Yes
Control system Yes Yes Yes Yes
Pressure Adjustment Stepless Stepless Stepless Stepless
Atomizing lubrication Yes Yes Yes Yes
Air filter Yes Yes Yes Yes
Electric Power(W)
 50 60 65 70
Weight(kg)
 105 112 120 135

　

　

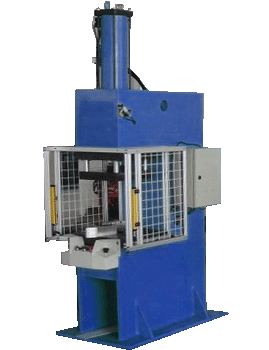

Vertical Air-hydraulic Boosting Rivetless Riveting Machine

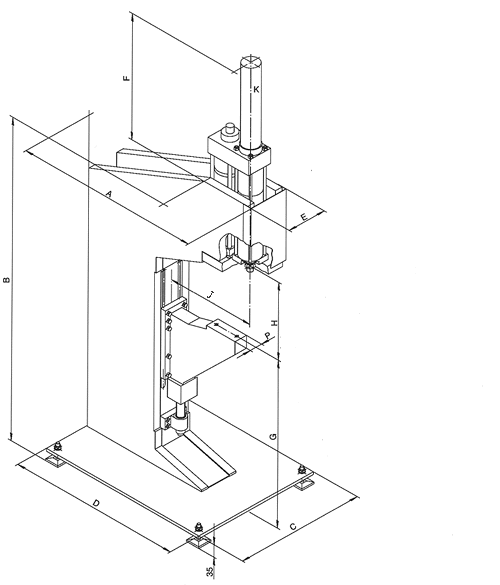

WMZ-15 Deep-Throat Rivetless Riveting Machine
Model Max.press A B C D E F G H J P
Unit （Ton） mm mm mm mm mm mm mm mm mm mm
WMZ－5 5 985 700 380 550 160 200 350 250 200 35
WMZ－8 8 985 700 380 650 200 200 350 250 200 45
WMZ-10 10 1450 1200 450 800 300 400 780 320 250 60
WMZ-15 15 1550 1300 550 950 400 400 780 320 300 70
        This type of machine can be customized as yours parameters.
Model
 WMZ-5 WMZ-8 WMZ-10 WMZ-15
Type Vertical Vertical Vertical Vertical
Punch Force (Ton)
 5 8 10 15
  Stroke（mm) 75 75 75 75
Power Stroke(mm) 5 5 5 5
Riveting rate(pcs/min)
 14～25 14～25 14～25 14～25
Max. Thickness(mm)
Gal. Steel
 2 3 4 5
Aluminum
 3 4 5 6
Air Supply 5-6kgf/cm2
Rated flow(m³/min)
 0.04 0.04 0.05 0.06
Positioning hole Yes Yes Yes Yes
Control system Yes Yes Yes Yes
Pressure Adjustment Stepless Stepless Stepless Stepless
Atomizing lubrication Yes Yes Yes Yes
Air filter Yes Yes Yes Yes
Electric Power(W)
 50 60 65 70
Weight(kg)
 215 240 280 325



Video---Rivetless Riveting Machine equipped with Laser Sight Device

Rivetless riveting is a process known as clinching which cold-forms the part metal using a special punch and die to form a strong interlocking clinch joint. No external fasteners, or welding is utilized in the process. Due to electric cabinet is square parts, it is inconvenient to use clamping method for positioning , we got a solutions that equipped with laser sight device for more accurate positioning.

High definition Video,Please click Video---Rivetless Riveting Machine equipped with Laser Sight Device



Video---Rivetless Riveting Machine for Fastening Car seat torsion bar

Car seat torsion bar has more than 6 points of riveting, its processing is a classic case.

High definition Video,Please click Video---Rivetless Riveting Machine for Fastening Car seat torsion bar

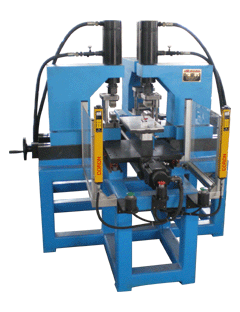

Air-hydraulic Boosting Rivetless Riveting Machine

Air-hydraulic Boosting Rivetless Riveting Machine

Air-hydraulic Boosting Rivetless Riveting Machine adopts the air booster cylinder to performing riveting joint process, equipped with XYZ three spindle positioning control system. The maximum riveting thickness is 8mm.

The obvious advantages of pneumatic boosting rivetless riveting machine includes stability processing, performing smooth surface and various adjustable functions. Users can adjust the riveting stoke length, riveting pressure, feeding rate, and also hydraulic system pressure to ensure perfect riveting performance. It is suitable for processing several rivets points on one workpiece that automatic complete processing this workpiece at once without adjust and position it again, also it will keep high precision. Air-hydraulic Boosting Rivetless Riveting Machine can use to process special purpose or large scale riveting job that other common riveting machine can not get it.

Main features of Pneumatic Boosting Rivetless Riveting Machine 数控无铆钉铆接机
■Apply the latest rivetless technology
■Programmable control for convenient and reliable operating
■XYZ three direction positioning system for accurate control
■Maximum moving distance of X spindle is 3 meters( see the picture)
■SIEMENS PLC system
■Seperated electrical control box
■Workpieces automatic positioning and holding
■Automatic feeding
■Single rivet point or multi rivet points(Double rivet points see the picture)
■Single head or Multi-head design(Dual head see th e picture)
■Fully functional pneumatic station
■Auto, Manuel and Semi-Auto selection

Specific parameters provided by the users, we design and manufacture them. We will customize as your requirement.


Video---CNC Rivetless Riveting machine for processing bus duct

Bus duct in the straight line direction must have ten of riveting, therefore the best choice is processed by CNC Rivetless Riveting Machine. This machine can complete 4 points at once and perform automatic turn out the fastened bus duct. It will increase 50% efficiency than that of traditional bolting method.

High definition Video,Please click Video---CNC Rivetless Riveting machine for processing bus duct

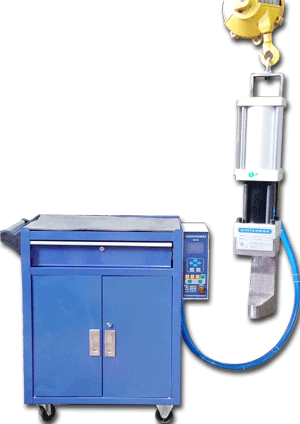

Hanging Rivetless Riveting Machine

Hanging Rivetless Riveting Machine

Hanging Rivetless Riveting Machine has a smaller hydraulic power unit which can connect to the various size C-guns. The advantages are lightweight, portable and easy to operating and maintenance.







Hanging Rivetless Riveting Machine can be applied to joint ventilation duck, flanges, ladder hinge etc.      无铆钉铆接机铆钳XWMZ-8
Main features of Hanging Rivetless Riveting Machine
■Hanging type
■Hand holding type available as well
■Fasten thickness less than 3 mm metal sheet
■Portable，easy to control, low noise
■Stepless pressure adjustment with pressure display
■Reserved two sets of interface,for configuring two rivet pliers, carry out the double differential riveting.
■Combined with different sizes of rivet clamps and cylinders for more functions.
■For any orientation of riveting
■Short circuit protection and security protection of the electric system.
■Non- oil leakage, long no trouble period.
■The specifications of two rivet clamps driven by one host is optional for upgrading.。

Model
 XMZ-5 XMZ-8 XMZ-10 XMZ-15
Type Hanging Hanging Hanging Hanging
Punch Force (Ton)
 5 8 10 15
Stroke（mm) 75 75 75 75
Power stroke(mm) 5 5 5 5
Two driven in one Available Available Available Available
Riveting rate(pcs/min)
 14～25 14～25 14～25 14～25
Max. Thickness(mm)
Gal. Steel
 2 3 4 5
Aluminum
 3 4 5 6
Air Supply 5-6kgf/cm2
Rated flow(m³/min)
 0.04 0.04 0.05 0.06
Blancer Spring balancer Spring balancer Spring balancer Spring balancer
Portable control system Yes Yes Yes Yes
Pressure Adjustment Stepless Stepless Stepless Stepless
Atomizing lubrication Yes Yes Yes Yes
Air filter Yes Yes Yes Yes
Auxiliary grip Twist grip Twist grip Twist grip Twist grip
Electric Power(W)
 50 60 65 70
Clamp Weight(kg) Seven specification is optional----12-80kg
Clamp Size Seven specification is optional----see size figure
Control cabinet Weight(kg)
 25 25 25 25
Control cabinet dimension(mm)
 400*580 *820 400*580 *820 400*580 *820 400*580 *820
Reserved two sets of interface,for configuring two rivet pliers, to carry out the double differential riveting.

Video---Hanging Rivetless Riveting Machine for Processing Air Conditioner Ventilation Valve

Stepless pressure adjustment with pressure display, pressure maintaining time adjustable, LCD touch screen, PLC control, riveting head replacement, Auto, Manuel and Semi-Auto selection

High definition Video,Please click Video---Hanging Rivetless Riveting Machine for Processing Air Conditioner Ventilation Valve



download   Irivet rivetless riveting machine information brochure
  Figure table for metal sheet thickness and stength
  Rivetless riveting machine operating manual
