Hyraulic Orbital Riveting Machine BM16A
Spin Riveting Machine
Vertical type
|
Model：BM16A |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Vertical type, medium size riveting design | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Max. riveting diameter 16mm (solid steel rivet) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Hydraulic driven, Stepless pressure regulation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Safty cover at rotating part for protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Reserved oil connector for hydraulic synchronous clamp | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Square lifting platform with large stroke length,locked by handle | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Wden workbench with T shape positioning hole | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Low temperature rise and Low noise of hydraulic station | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Electric control box equipped with fully functional LCD screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Adjustable riveting time, Mode selection: Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Ergonomic design, easy operation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

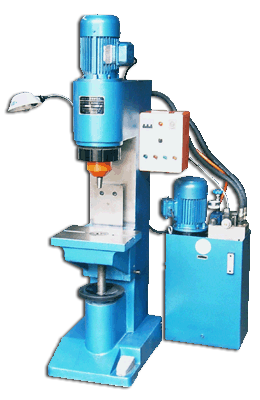

BM16A |
Application scope: Automobile and motorcycle accessories, Aircraft, Building hardware, etc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| The dimesion may customize as your requirement. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BM16-A is a vertical type orbital riveting machine driven by hydraulic power. It is the Economic Edition of BM16 for the customers who like to lower cost. While the functions is almost same as BM16, the only change is electrical control unit without some expensive parts like LCD digital display, but it can also carry out the automatic control. The adjustable head can be lifted up and down by turning of screw pole and it can control the rough adjusting effectively, while micro adjusting is controlled by the powerhead in screw cap. The center hole of workbench are coaxial with the spindle,it is useful for positioning and holding the workpiece tightly. A flow regulating valve on the high pressure pipe can be used to adjust the rate of riveting process. It is low noise due to equipped with automatic deload device. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Parameters of BM16A | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Riveting Diameter Range Φ2~Φ16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. riveting pressure 34KN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. delivery pressure ( oil pump) 2.5MPa | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. stroke 30MM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. height (from powerhead to the workbench) 200MM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. height of workbench lifting 200MM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Diameter of positioning hole Φ16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Distance( from powerhead to guide rail) 195MM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Extend length of rivets Standard 62MM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Workbench size 350MM×285MM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power 2.2Kw | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Direction of oil pump motor rotation Clockwise | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension 850MM×600MM×1700MM(Not including oil container) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net weight 570Kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pressure calculation chart(Stepless pressure regulation)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video--Testing of Orbital Riveting Machine
The qualified Orbital riveting machine must should have slow and stability rotary of powerhead movement, as well must should be low noise.Let's watch this video about our products.
High definition Video,Please clickVideo--Testing of Orbital Riveting MachineVideo--Processing workpiece by Orbital Riveting Machine
The processing of workpieces by common orbital riveting machine.
High definition Video,Please click Processing workpiece by Orbital Riveting Machine
| Upgrade project | |||
 |
 |
 |
 |
| Micro adjusting index | Automatic lubricator | Integration control panel | PLC pressure monitor |
