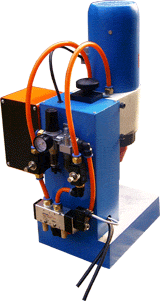

Pneumatic Orbital Riveting Machine BM3TQ-C

Spin Riveting Machine

Long stroke Desktop type

铆接机旋铆机自动铆接机

Model： BM3TQ-C
■Desktop type, Handy size, Lightweight
■Max. riveting diameter 3mm(solid steel rivet)
■Pneumatic driven, Stepless pressure regulation，Adjustable stroke speed
■Safty cover at rotating part for protection
■Widen workbench,Powerhead lift up and down
■Model slection: Auto/Manual
■Air hose filter and atomizing oil lubricating
■Electrical control
■Adjustable riveting time

BM3TQ-C　

 Application Scope：Instrument and gauges,Sensitive electrical or electronic components, Daily hardware, etc.

　

 The dimesion may customize as your requirement
　 　

BM3TQ-C is a handy size orbital riveting machine driven by pneumatic power. The working stroke is longer than BM3TQ (BM3TQ is 20 mm and BM3TQ-C is 30mm).It adopt the orbital technology-advanced cold rolling technology. The adjustable head can be lifted up and down by turning of screw pole and it can control the rough adjusting effectively, while micro adjusting is controlled by the powerhead in screw cap.

The center hole of workbench are coaxial with the spindle,it is useful for positioning and holding the workpiece tightly.

The double air regulators can be used to control riveting speed effectively and the air hose equipped with air filter for preventing moisture.The counter on the electricity control panel can be used to count the quantity of riveted work pieces.

The best quality of all units on this machine ensure the smooth surface of workpiece and stability of processing.
　




Micro Adjusting Lock Adjusting Index (Optional) Wind-shelter
Adjustable Head Two-way Speed Regulating Valve Control Box
　 　 　
Parameters of BM3TQ-C
▲Range of workpiece diameter  Φ2-Φ6
▲Maxi. working pressure         5KN
▲Maxi. working stroke           30mm
▲Maxi. height from power head to the workbench       80mm
▲Maxi. height of workbench lifting              80mm
▲Diameter of positioning hole           Φ10mm
▲Extend length of rivets        50mm
▲Workbench size            240mm×306mm
▲Power                      0.18Kw
▲Dimension                 330MM×300MM×630MM
▲Net weight                      70Kg
▲Air pressure and flux      Pressure 4-5kgf/cm2  Flow 0.04m3/min
　
BM3TQ-C (mm)
A B C D F G H I J K K2 M N  T U V W
240 160 75 110 Φ115 630 Φ80 268 330 80 105 185 300 130 285 80 110
We reserve the right to modify the dimension parameters without prior notice.
