Hyraulic Orbital Riveting Machine-BM9L

Hydraulic Spin Riveting Machine

Floor type

铆接机旋铆机自动铆接机

液压立式铆接机

Model:BM9L

■Floor type, medium size riveting design
■Max. riveting diameter 9mm (solid steel rivet)
■Hydraulic driven, Stepless pressure regulation
■Safty cover at rotating part for protection
■Reserved oil connector for hydraulic synchronous clamp
■Square lifting platform with large stroke length,locked by handle
■Wden workbench with T shape positioning hole
■Low temperature rise and Low noise of hydraulic station
■Electric control box equipped with fully functional LCD screen
■Adjustable riveting time, Mode selection: Auto/Manual
■Ergonomic design, easy operation

BM9L

Application scope: Automobile and motorcycle accessories, Aircraft, Construction hardware, etc.
   The dimesion may customize as your requirement.

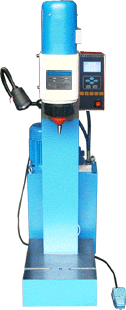

BM9L is a medium size and floor type orbital riveting machine driven by hydraulic power. It adopts the fifth generation of orbital technology-advanced cold rolling technology.

It is particularly applicable for processing much long workpiece, the maximum long pole length is 820mm. The adjustable head can be lifted up and down by turning of screw pole and it can control the rough adjusting effectively from 0 to 180mm, while micro adjusting is controlled from 0 to 30mm by the powerhead in screw cap.

The center hole of workbench are coaxial with the spindle,it is useful for positioning and holding the workpiece tightly. A flow regulating valve on the high pressure pipe can be used to adjust the rate of riveting process. The counter on the electricity control panel can be used to count the quantity of riveted work pieces.The good quality of all units on this machine ensure the smooth surface of workpiece and stability of processing.



液压立式铆接机

Parameters of BM9L
Riveting Diameter Range    Φ2~Φ9
Max. riveting pressure          14KN
Max. delivery pressure ( oil pump)     2.5MPa
Max. stroke           30MM
Max. height (from powerhead to the workbench)   820MM
Max. height of workbench lifting     200MM
Diameter of positioning hole    Φ16
Max. Distance( from powerhead to guide rail)  160MM
Extend length of rivets            Standard 50MM
Workbench size          360MM×500MM
Power               0.92Kw
Direction of oil pump rotation    Clockwise
Dimension    740MM×400MM×1600MM (Not including oil container)
Parameters of others model Riveting Machines Net weight                       340Kg
