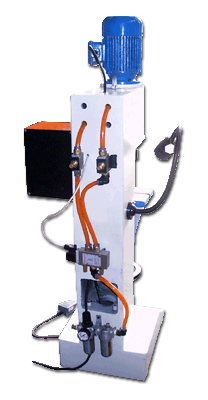

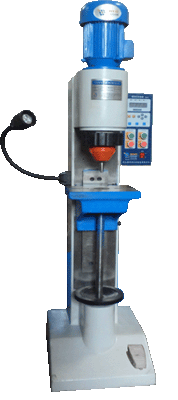

Pneumatic Orbital Riveting Machine-BM9Q
Spin Riveting Machine
Vertical type
|
Model：BM9Q |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Vertical type, medium size riveting design | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Long sroke length 0-60mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Max. riveting diameter 9mm (solid steel rivet) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Pneumatic driven, Stepless pressure regulation, Bi-directional speed adjustable | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Air filter and dryer, spraying lubrication | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Reserved air connector for pneumatic synchronous clamp | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Square lifting platform with large stroke length,locked by handle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Wden workbench with T shape positioning hole | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Low noise riveting machine | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Electric control box equipped with fully functional LCD screen | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Adjustable riveting time, Mode selection: Auto/Manual | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■Ergonomic design, easy operation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BM9Q |
Application scope: Automobile and motorcycle accessories, Aircraft, Construction hardware, etc. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

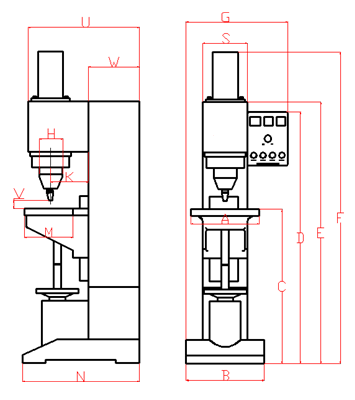

| The dimesion may customize as your requirement. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BM9Q is a medium size and Vertical type orbital riveting machine driven by Pneumatic power. It adopts the fifth generation of orbital technology-advanced cold rolling technology. It is applicable for larger diameter of rivets than that of BM6 series. The adjustable head can be lifted up and down by turning of screw pole and it can control the rough adjusting effectively, while micro adjusting is controlled by the powerhead in screw cap. The center hole of workbench are coaxial with the spindle,it is useful for positioning and holding the workpiece tightly. The double air regulators can be used to control riveting speed effectively and the air hose equippped with air filter for preventing moisture The counter on the electricity control panel can be used to count the quantity of riveted work pieces.The good quality of all units on this machine ensure the smooth surface of workpiece and stability of processing.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pressure calculation chart(Stepless pressure regulation)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video--Testing of Orbital Riveting Machine
The qualified Orbital riveting machine must should have slow and stability rotary of powerhead movement, as well must should be low noise.Let's watch this video about our products.
High definition Video,Please clickVideo--Testing of Orbital Riveting MachineVideo--Processing workpiece by Orbital Riveting Machine
The processing of workpieces by common orbital riveting machine.
High definition Video,Please click Processing workpiece by Orbital Riveting Machine
| Upgrade project | |||
 |
 |
 |
 |
| Micro adjusting index | Automatic lubricator | Integration control panel | PLC pressure monitor |
